Out Lock

Characteristics

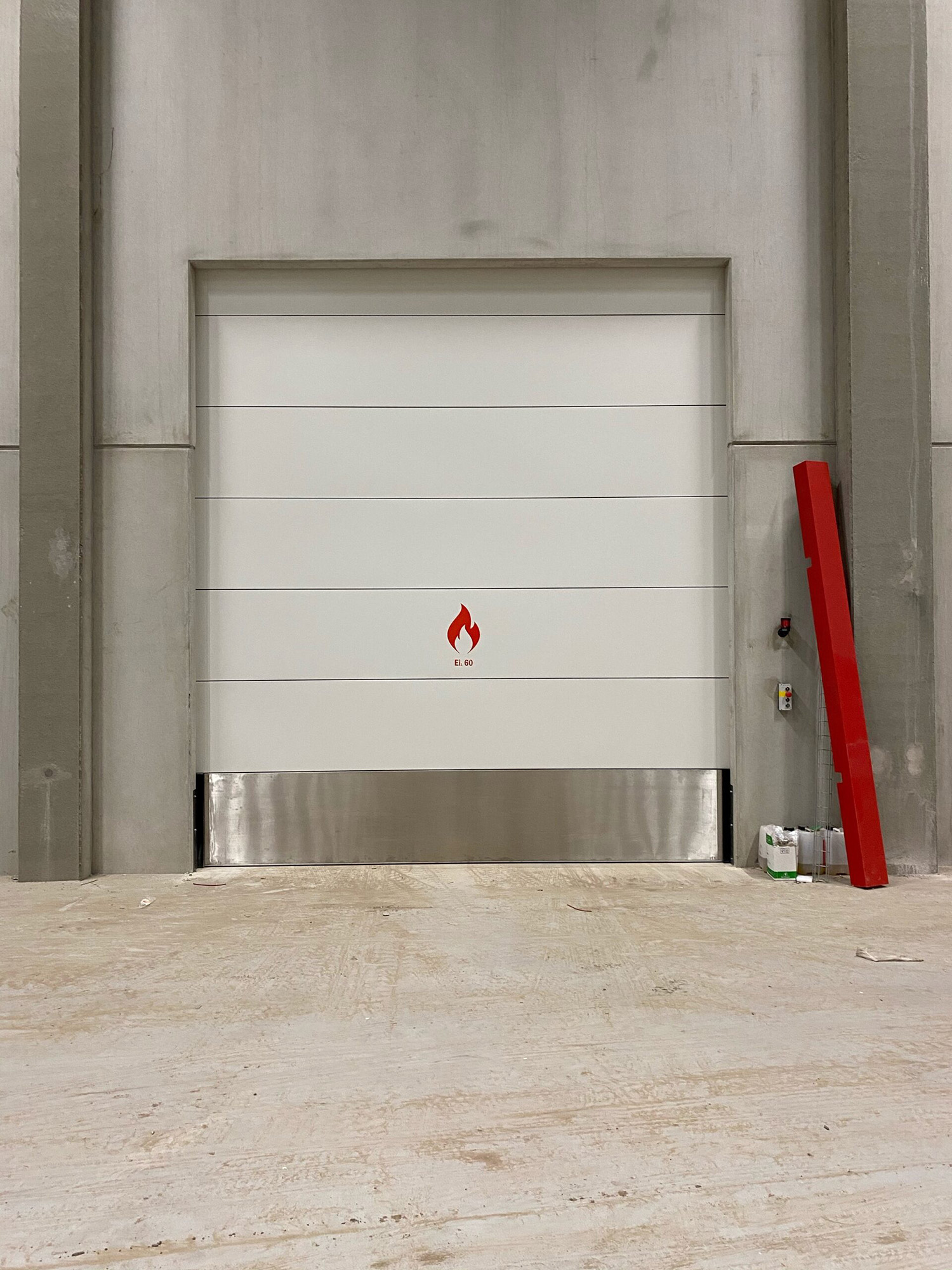

The Outlock industrial sectional shutters are specifically engineered for outdoor applications. Whether used for external loading and unloading areas, façade openings in the building envelope, or stand-alone external facilities, this door ensures a reliable seal, resistant to various weather conditions and intensive industrial use.

The thermal performance of Outlock is calculated in accordance with EN 12428, making this solution ideal for applications where energy efficiency is also a key factor.

Technical specifications Out lock:

  • Thermal transmittance: UD = 1,2 Wm²K
  • Test standard: EN 12428
  • Insulation thickness: Minimum 80 mm
  • Maximum surface area: 45 m²

Various fire resistance levels available:

– EI1 60, EI1 120, EI1 180, EI1 240
– EN 13501-2
– EN 1634-1: EI1/ EI2/ EW

  • External application: water-resistant
  • Tested on both sides
  • Without irrigation
  • Extremely robust
  • Fully autonomous operation
  • Available with colour finishes and to order
  • Failsafe
  • Functional shutter

Additional features

Winlock shutters can combine different features. Depending on your needs, one or more features can be added to the standard Winlock.

Winlock, Liquid lock, Food lock, Safe lock, Noise lock, Wind lock, Smoke lock, Frost lock, Quake lock, Atex, Air lock, Pressure lock, Cryo lock, Opti lock

Built-in options

Reduced lift

For restricted overhead clearance

Horizontal lift

From 600mm overhead clearance

Inclined lift

Angle of slope <45°

Vertical lift

Vertical upwards

Installation walls

Concrete block masonry

Autoclaved aerated concrete

Concrete blocks

Fire resistant mineral wool panels

Poured concrete

Rapid-build masonry

Gyproc
